15KV Class Fusible Link
- Model: 15KV Class
The 15 kV Class Fusible Link is a high-reliability overcurrent protection component engineered for overhead distribution networks. It acts as the intentional weak point in the circuit, interrupting excessive current to prevent equipment damage, feeder faults, or extended outages. Built for harsh outdoor environments, it keeps power lines working with the calm steadiness of a sentry on a wind-swept pole.
Low loss, High interrupting capabllity
Resetting Mechanlsm&Emergency Control, Easy for Malntalnance
Complete Certification
Key Features
1. High-Voltage Protection (15 kV Class)
Designed for medium-voltage distribution lines, providing dependable fault isolation during short-circuit and overload events.
2. Precision-Calibrated Fuse Element
Ensures accurate melting time and consistent performance under ANSI/IEEE standards.
3. Durable, Weather-Ready Design
Manufactured with corrosion-resistant materials that withstand UV exposure, temperature swings, salt spray, and long-term outdoor operation.
4. Easy Field Replacement
Compatible with standard cutout designs, enabling fast installation and minimal downtime.
5. Wide Current Ratings Available
Suitable for transformers, capacitor banks, tap lines, and lateral protection.
-
Standards
❶ Model and specification
15kV class 23KV class 34.5KV class Refer to curve (K) 15TC6K 23TC6K 34.5TC6K 6 15TC8K 23TC8K 34.5TC8K 8 15TC10K 23TC10K 34.5TC10K 10 15TC12K 23TC12K 34.5TC12K 12 15TC15K 23TC15K 34.5TC15K 15 15TC20K 23TC20K 34.5TC20K 20 15TC25K 23TC25K 34.5TC25K 25 15TC30K 23TC30K 34.5TC30K 30 15TC40K 23TC40K 34.5TC40K 40 15TC50K 23TC50K 34.5TC50K 50 15TC60K 23TC60K 34.5TC60K 60
❷ Interrupting rating. Application Voltage is single phase line to ground and/or three phase line to line
interrupting Rating Application Voltage Interrupting Rating(rs symmetrical amperes 7.2KV 3500 12.0KV 3000 14.4KV 2500 23.0KV 1200 34.5KV 1200 -
Product Dimension
Key Dimensions Overview
The following drawings show only partial product dimensions.
For the complete set of engineering drawings or full specifications, please contact us at [📪nancywang@ketranele.com].
-

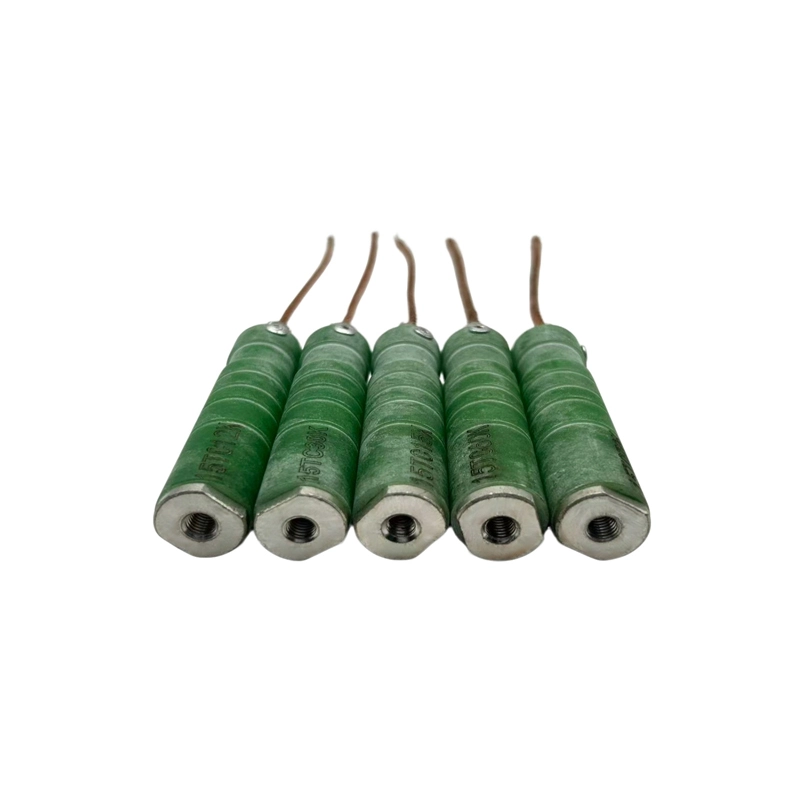

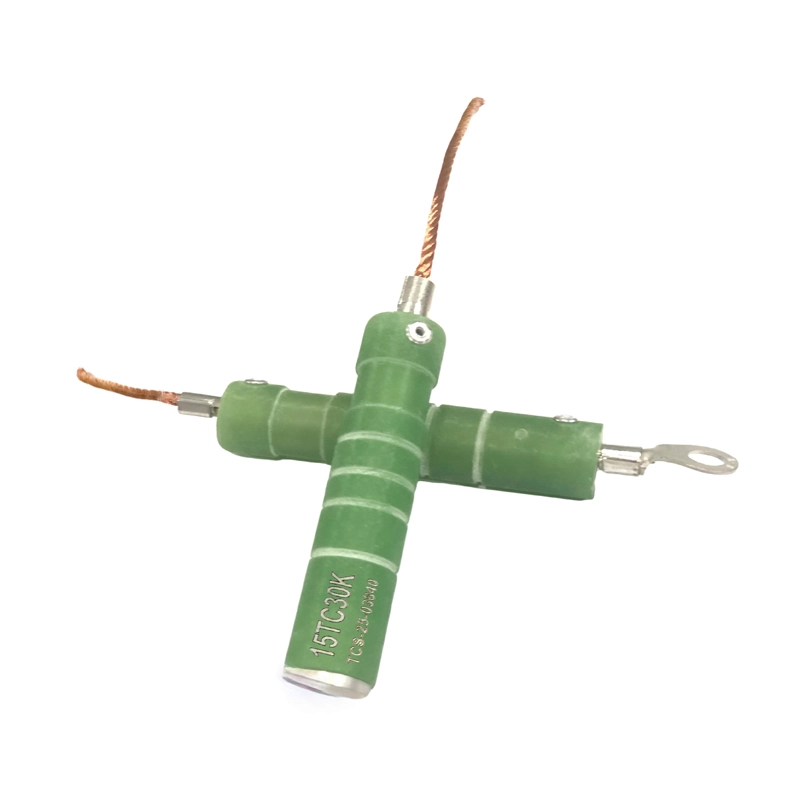

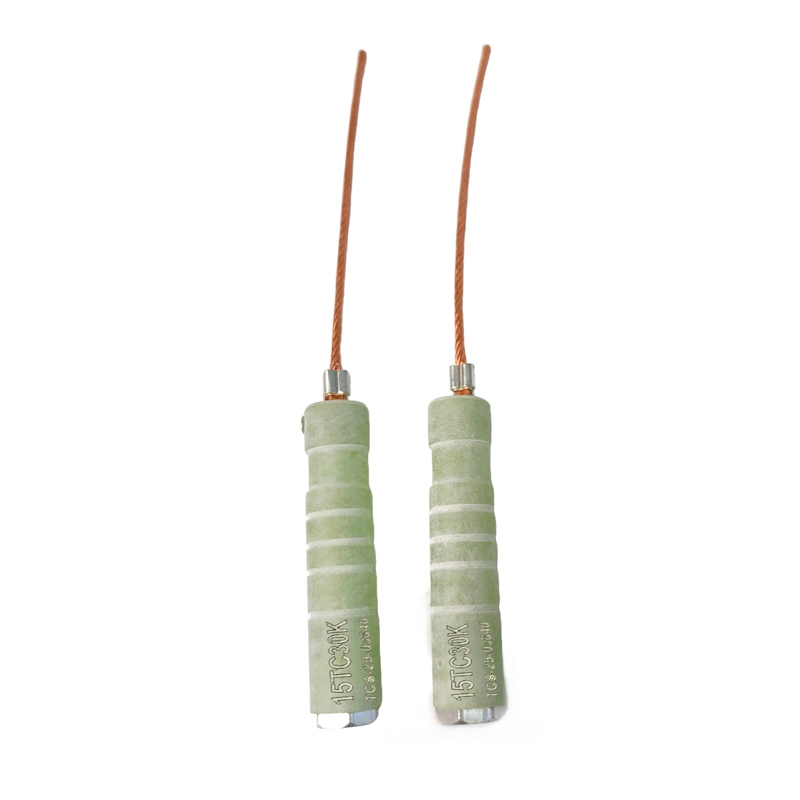

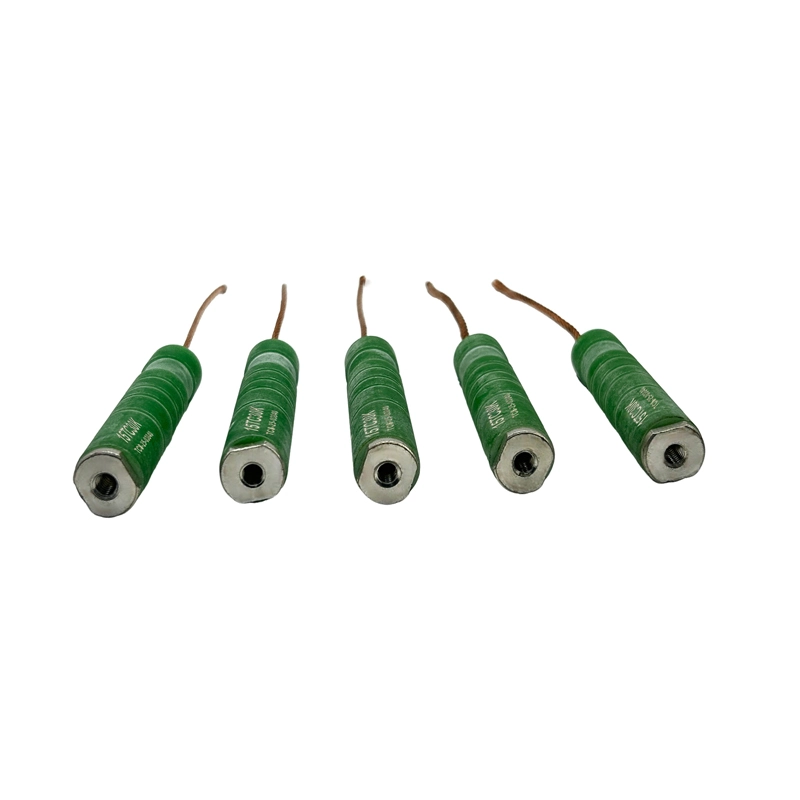

Photos
