CSP Solution
CSP Components for CSP Transformers
CSP transformers rely on a complete set of built-in protection and monitoring components to ensure safe, reliable, and maintenance-free operation. These CSP components are fully integrated into the transformer, providing essential protection and operational monitoring to maintain stable performance under various operating conditions.
They Provide:

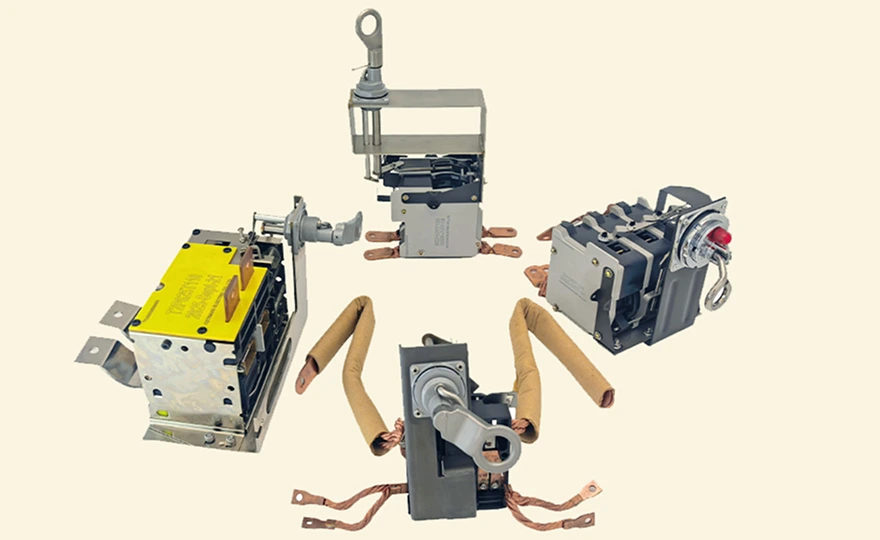

Main CSP Components Used in CSP Transformers
CSP Components

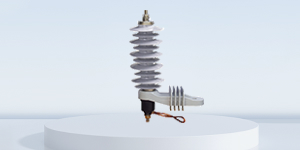

There are several CSP components for completely self-protected distribution pad-mount and pole mount distribution transformer, such as the low voltage CSP breaker, the low voltage arrester, the high voltage expulsion fusible and the High voltage lighting arrester. CSP design provides maximum protection against transformer failure and disruptive outages.

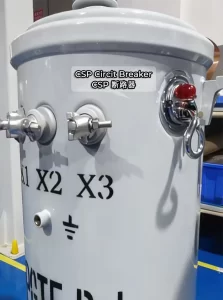

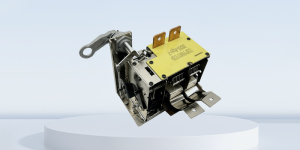

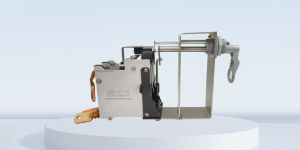

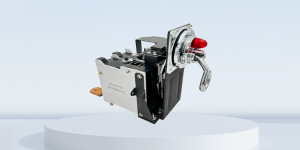

CSP Circuit Breaker
The CSP breaker is installed between the transformer’s low-voltage winding and the secondary bushing, ensuring that all secondary load current flows through its bimetal element and main contacts. By utilizing the thermal effect of the built-in bimetal strip for overload protection and the electromagnetic action of the magnetic trip for short-circuit response, the breaker can quickly interrupt fault currents and provide reliable protection for the transformer.
Capacity Range: 5KVA-300KVA

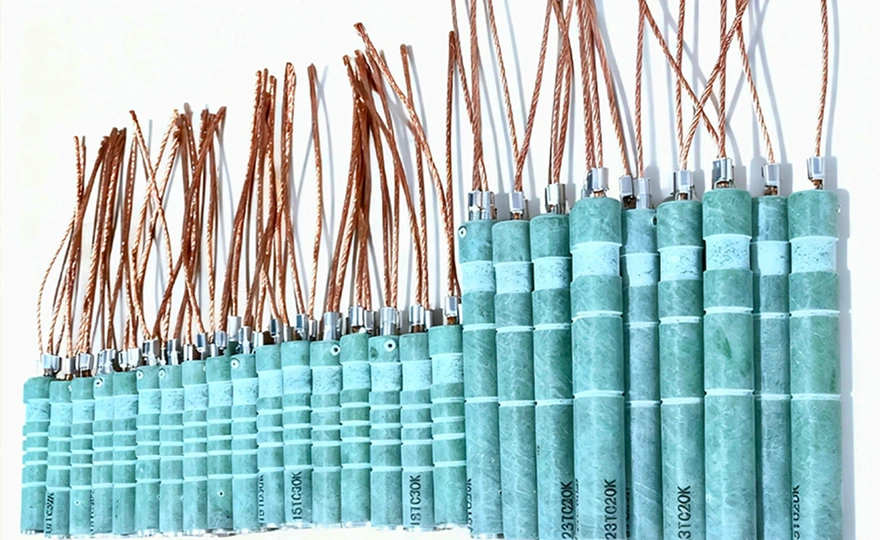

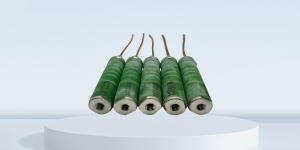

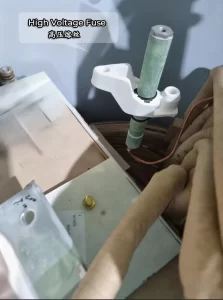

HV Expulsion Fuse
Ketrans HV (High Voltage) Weak Link fuse is a specialized expulsion fuse, oil-immersed—designed for distribution transformers. It protects the power system by isolating faulty transformers and acts as a “weak point” that blows on internal faults or extreme overloads.
Voltage Range: 2.4kV-34.5kV

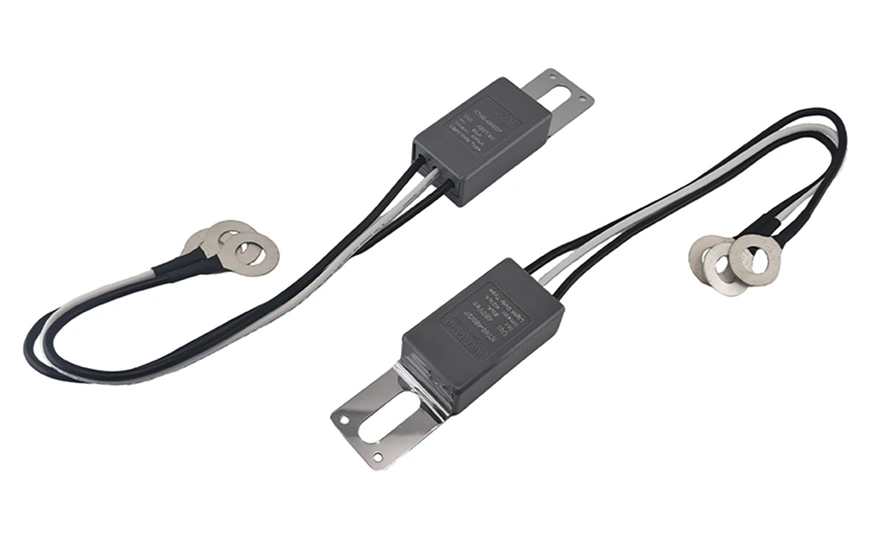

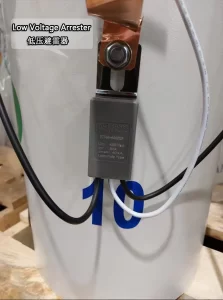

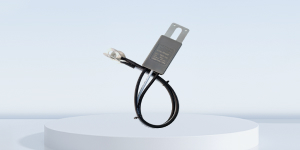

LV Lightning Arrester(Rod)
A surge protector (SPD) is a key device used to protect low-voltage power distribution systems and equipment from damage caused by transient over-voltages (such as surges generated by lightning strikes or switching operations). It primarily utilizes the operating characteristics of nonlinear resistive elements (such as metal oxide varistors, MOVs, and gas discharge tubes) to achieve protection.
Why CSP Components Matter in Distribution Transformers?

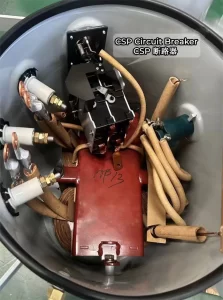

CSP Components Application in Transformer
Take a look at how our CSP components are used in high-performance distribution transformers, CSP technology mitigate the operation and maintenance problems associated with conventional transformers.
The Value of High-Quality CSP Components
Selecting high-quality CSP components is not only a matter of meeting industry standards (IEC, IEEE), but also the most responsible investment in the stability of the power system and the safety of equipment assets.
Whether you are a power engineer, procurement professional, or equipment maintenance expert, understanding the functions and synergy of these core components is crucial for maintaining reliable electrical infrastructure.
Contact Us for more detailed specifications, selection guides, and pricing information on CSP components.
